Olympus Pen F / FT Light Seals Replace Kit

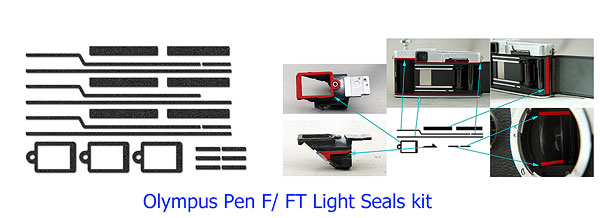

Olympus Pen F / FT Light Seals Kit

This is the Olympus Pen F / FT's Light Seals foam (backdoor gasket sponge) replacement kit.

When the original light seals become old, the camera can experience light leaks and backdoor rattling. Replace them with new seals so you don't have to worry about those problems anymore.

Please note: This kit fits Pen F and Pen FT only. It does NOT fit other Pen series cameras.

3 Foam Kits Included
Installing this kit is not very difficult. Light seals foam is self-adhesive and cut to the shape of the rear door ditch. 3 foam kits are included in one set, so you don't have to worry if you waste one. You can use 1 kit for practice, and install perfectly on the 2nd try!

Purchasing Options

Olympus Pen F/FT Light Seals Kit

$8.50 USD
+ Shipping Fee
Shipping fee

Asia : $5.50 US (registered airmail)
Europe Oceania Middle East : $6.30 US (registered airmail)
USA : $7.20 US (registered airmail)
South America & Africa : $6.50 US (registered airmail)

Installation Details

This seal kit covers the green halftone portions shown below. It seals light from the outside perfectly.

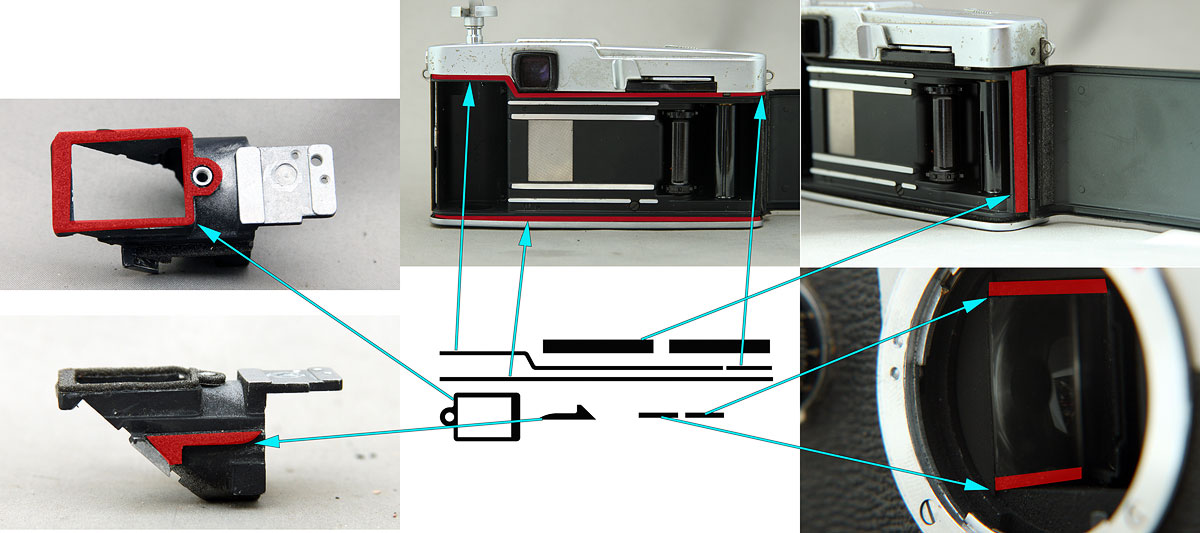

Installation Overview

Main Installation Points

Click to enlarge

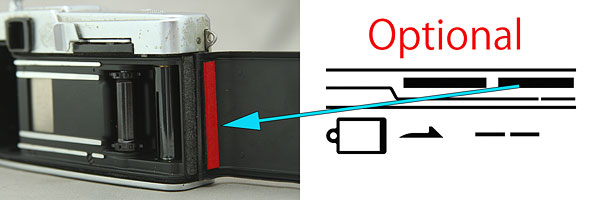

Optional Installation

Optional Installation

Usually you do not have to install this. If you find light leaks, try installing it.

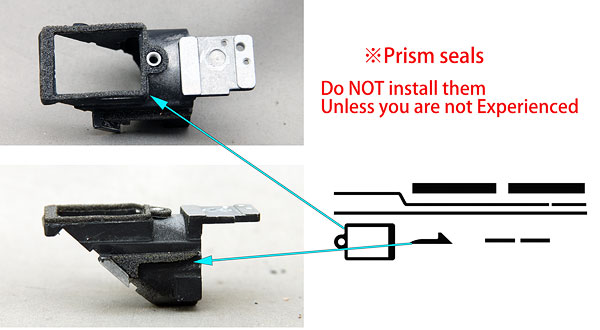

Warning: Prism Seals
Prism Seals Warning

As for the prism seals, you should not install them unless you are experienced.
