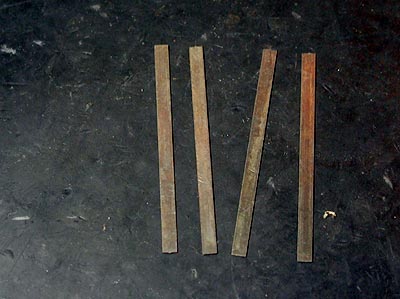

1. Prepare 4 pcs thin iron bars. |
2. Cut the shutter tape about 15 cm length each, need 4 pcs. |
|
 |
 |
|

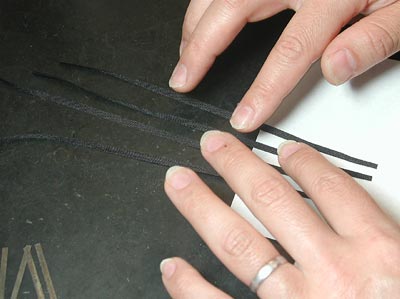

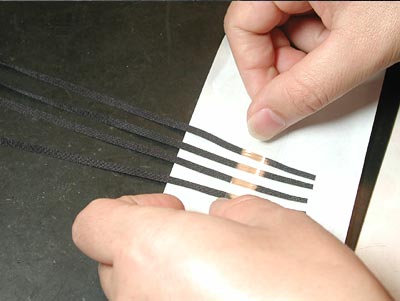

3. Align these tapes and hold them on the paper with scotch tape (Sellotape). |
||
 |
 |
|

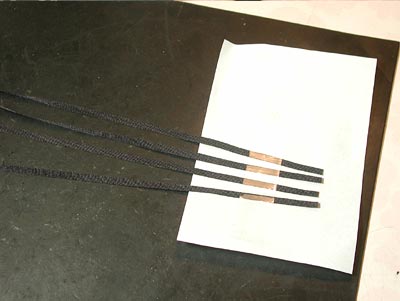

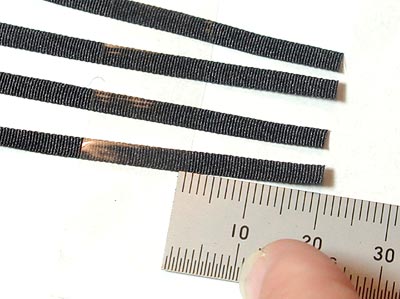

4. Please remain 2 cm overlap for adhesive. |

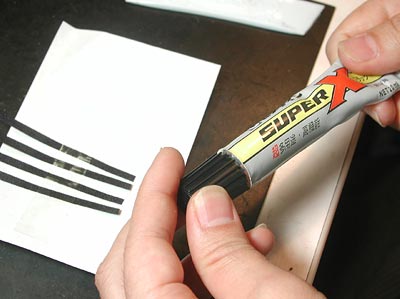

5. I do not know what kind of adhesive is available in your place, we use SUPER-X. This is the best adhesive to making shutter unit. Click here to find some information for Super X adhesive. |
|
 |
 |
|

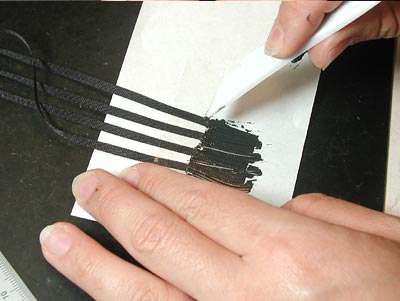

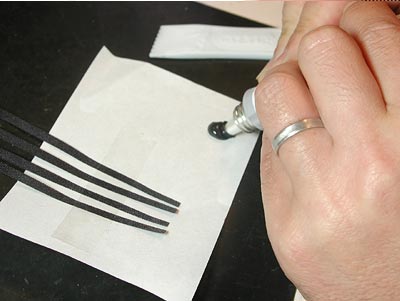

6. Rub the Super-X or your bond thinly onto the shutter tape. |
||
 |
 |
|

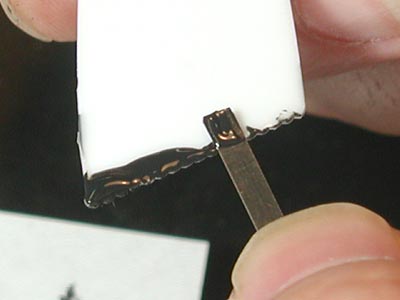

7. Also rub it onto the edge portion of the iron bars. |

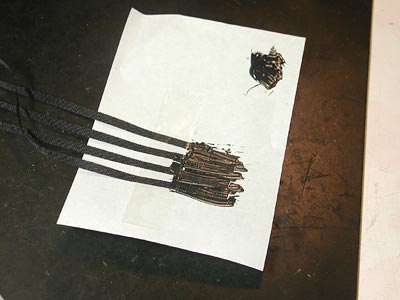

8. Dry them well. If you use Super X, you need to dry approximately 10 minutes or more until the adhesive become sticky. |
|
 |
 |
|

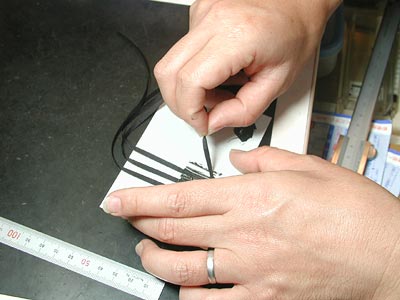

9. Remove the shutter tape from the base paper. |

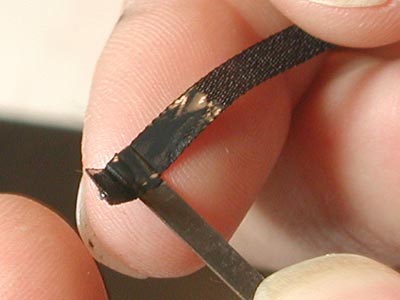

10. apply the tape to the iron bar. |
|
 |
 |
|

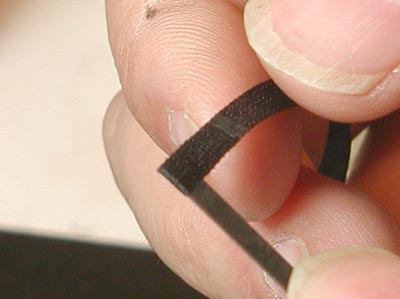

11. Stick each adhesion faces. |

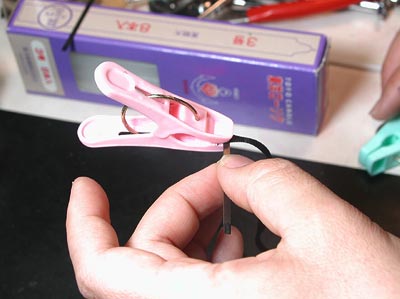

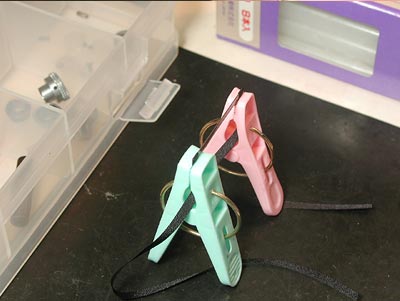

12. press with clothespin or clamp. |
|
 |
 |
|
13. Dry it 15 minutes or more until the adhesive dry completely. |

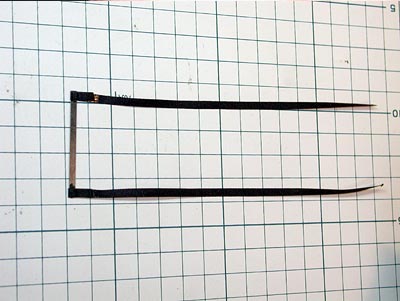

14. If you use Super-X, you can make very durable horizontal shutter unit easily. |
|
