FED-2 Covering Installation guide.

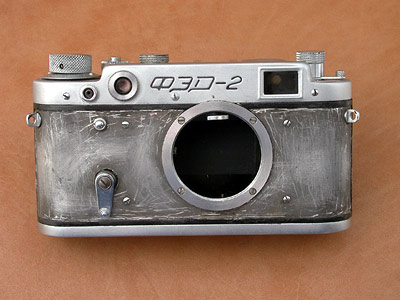

1. Remove the original vulcanite and clean up the surface.
Please Click Here to find a vulcanite removal guide page

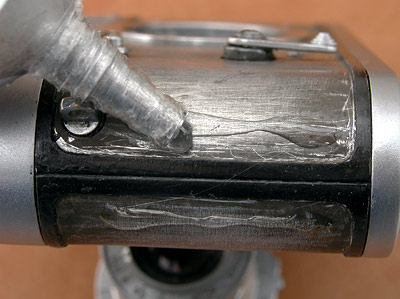

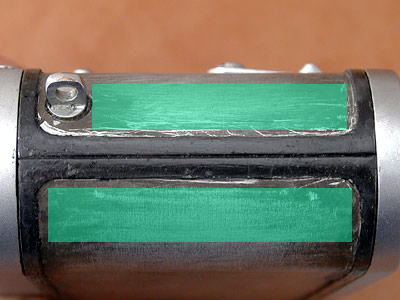

2. I strongly reccomend to rub Rubber Cement (you can find easily on DIY shop) on the half tone portions above for strengthen the edges.

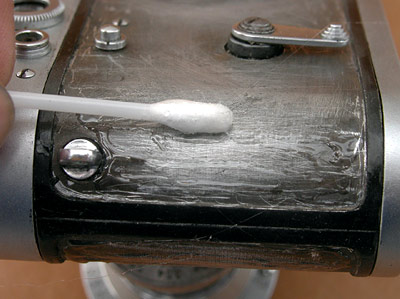

3. When you use Rubber cement, please dry it well (3 to 5 minutes or more) then stick the covering.

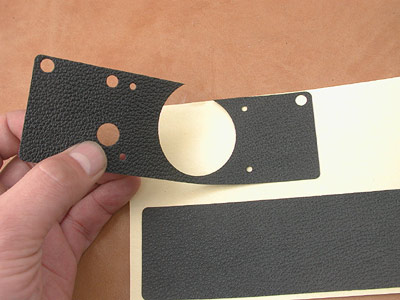

4. Apply the leatherette from the front part.

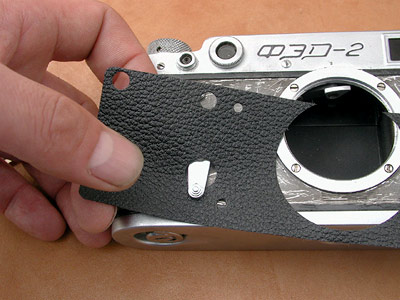

5. Slide the leatherette under the selftimer lever.

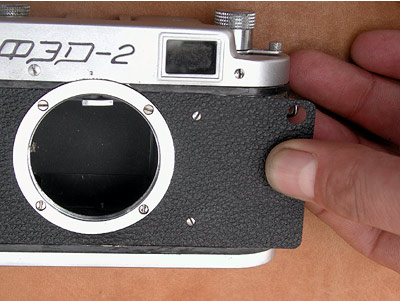

6. Then apply mount portion and positioning the screw holes.

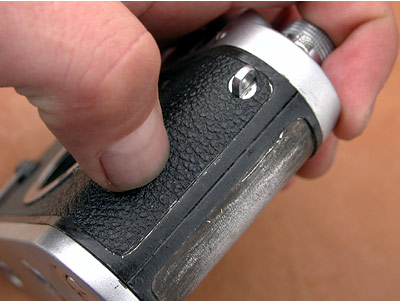

7. It comes to the edge.

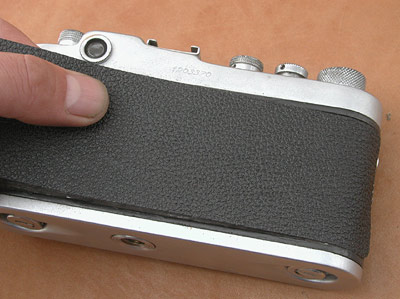

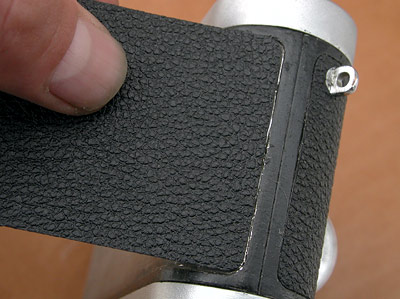

8. Go ahead to the rear part. Apply from the edge.


9. You do not have to stretch the coverings.

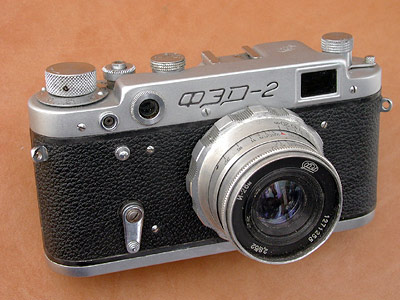

10. Finished.
